Bristan Gummers 15mm Thermostatic Mixing Valve With Isolation

Bristan Gummers 15mm Thermostatic Mixing Valve With Isolation

Rate This:
: £6.95
Item Code:
B3-21532
MFC Code:
MT503CP-ISO

£73.01 inc VAT

RRP: £118.00

  • Comes in chrome finish
  • Isolation at mixing point facilitates easy servicing
  • Automatic shutoff in the event of hot or cold water supply failure
  • Check valves and serviceable filters as standard

Description

The sleek Thermostatic Valve from Bristan is a safe and excellent bath-area device which comes with a factory-set temperature and automatic shut-down system in case of water failure. The chrome plated fixture incorporates the isolation at mixing point, which facilitates easy servicing and maintenance. Simple downloadable instructions make it easy-to-install and its efficacious functioning is guaranteed by a 12-month guarantee against any manufacturing faults from the company. This WRAS approved product is sold at an inexpensive price from Bathrooms 365.

Specification

  • Operates at a maximum pressure differential of 10:1
  • High pressure bath fill Part G compliant
  • WRAS approved product
  • Suitable for high pressure bath fill with 22mm inlet and 15mm outlet
  • 0.1 bar minimum pressure drop
  • Maximum dynamic pressure: 5 bar
  • Maximum static pressure: 10 bar
  • Factory preset temperature: 43ºC
  • Maximum hot water supply temperature: 80ºC
  • TMV2 and TMV3 certified product
  • Size : 198 x 103.5mm [Width x Height]

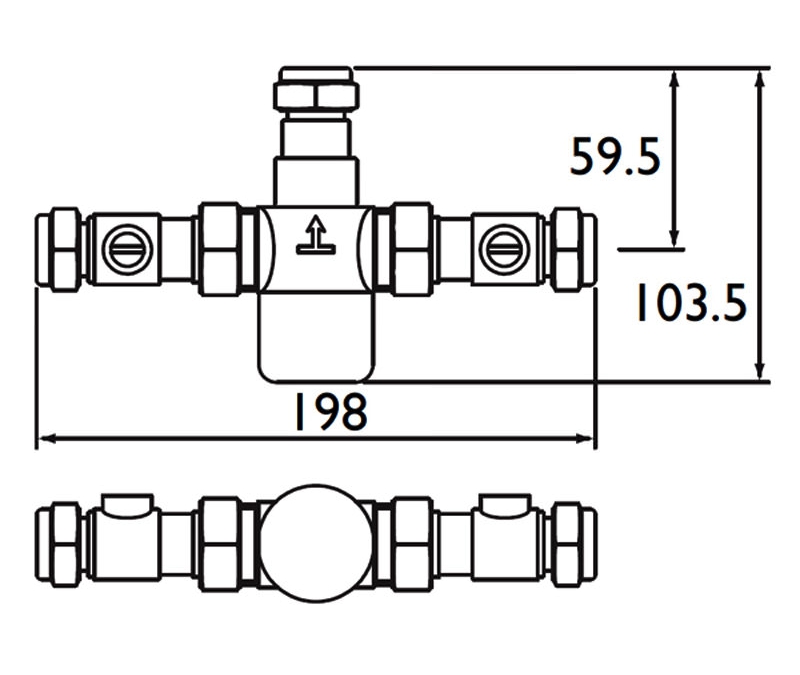

  • For complete size details please refer technical drawing
  • Download PDF for fitting instruction
  • 1 years guarantee against any manufacturing defects.
