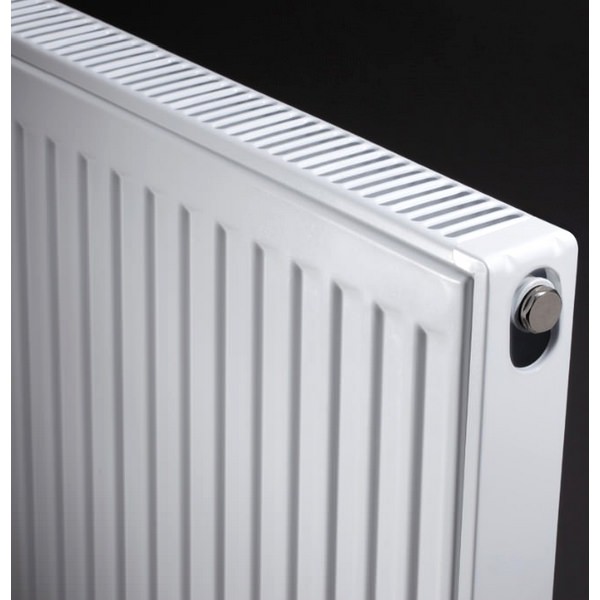

Kartell K-RAD Kompact Double Panel Single Convector Radiator 700 X 500mm
Specification
Height (A) : 500mm
BTU output ∆T50ºC : 863 Watts, 2943 BTUs
BTU output ∆T60ºC : 1105 Watts, 3770 BTUs
Centre Distance (B) : 445mm
Depth (C) : 70mm
Wall to centre (D) : 65 or 80mm
Comes complete with factory fitted top grille and side panels
Manufactured using the latest state-of-the art technology ensuring maximum efficiency
APPLICATIONS : Suitable for two pipe installations. For single pipe applications, it is advisable to use diversion tees in the pipework, as this will assist in obtaining design performance from the radiators
INSTALLATION : Everything required for installation can be found within the robust packaging. Brackets are of a strong design, with open top and deep slots, which facilitates easy and secure installation. Plastic inserts seat the radiator precisely on the bracket minimizing expansion and contraction noise. The neat nickel-plated plug and vent provide a watertight joint, whilst complementing the superior finish
